Name: Mission U 120 Urine Analyzer
SKU: 71105
Availability: InStock

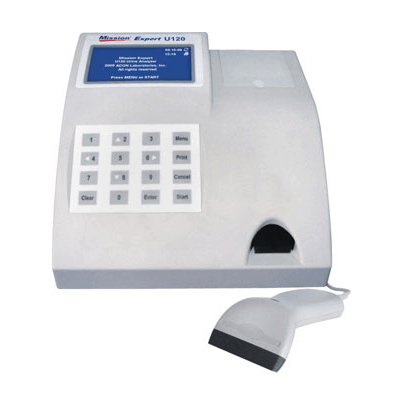

Mission U 120 Urine Analyzer

https://www.aconlabs.com/wp-content/uploads/2016/12/mission-u120-200px.png

The Mission^® U120 Urine Analyzer is a great tool to use with the Mission Urinalysis Reagent Strips. This analyzer has the capability of running up to 120 tests per hour and saving and recalling 2000 results automatically. The Mission^® U120 Urine Analyzer facilitates high volume testing and provides a sense of confidence in the accuracy of the results. This analyzer is 510(k) Cleared and CLIA Waived for use with the Mission® Urinalysis Reagent Strips and Mission® Urine Controls.

• Up to 120 tests/hour in Continuous Test Option
• Test categories include Routine, STAT and QC
• Automatic calibration for accurate results and easy operation

• Can read strips with up to 11 parameters, including Microalbumin/Creatine/Calcium
• Record Operator/Patient ID by Manual Entry and Barcode Reader
• Capability of data transfer to an external computer or LIS

• Saves and recalls the last 2,000 results automatically
• Can print up to 3 copies per test for convenient reviewing and easy record keeping
• Option to print results on sticker paper for quick and simple record management

Features	Specifications
Type	Manual
Methodology	Reflectance Photometry
Detection	Photosensitive Diode
Throughput	Single Test Option: 60 tests/hour Continuous Test Option: 120 tests/hour
Test Categories	Routine, STAT and QC
Memory	Last 2,000 results
Strip Incubation Time	1 Minute
Wavelength of Monochromatic LED	525 nm and 635 nm
Default Strips	8, 9, 10, 11 Parameters (108 mm x 5 mm)
Strips Available	1-11 parameters (108 mm x 5 mm); see URS Parameters
Total Combinations Per Analyzer	4 Combinations
Analyzer Ports	RS232C Port for Barcode Reader or Data Transfer USB Port for Data Transfer 25 Pin Parallel Port for External Printer
Data Entry Capabilities	Operator/Patient ID – Manual Entry and Barcode Reader (Up to 20 characters)
Connection Capabilities	Internal Thermal Printer (included) Optional External Printer (not included)	RS232C Barcode Reader (optional) USB or RS232C Data Transfer Cable (optional)
Major Readable Barcodes	Code 128, Code 39, Codabar (NW-7), EAN 8, EAN 13, Interleave 25 , UPCA, UPCE
Calibration	Automatic
Available Languages on the Screen	English and additional language(s)
Operating Conditions	0-40°C (32-104° F); < 85% RH
Storage Conditions	-5-50°C (23-122° F); < 90% RH
Power Source	100-240 VAC, 50-60 Hz
Dimensions (L x W x H)	27.2 cm x 26.9 cm x 14.6 cm (10.7″ x 10.6″ x 5.7″ )
Display Dimensions (L x W)	10.8 cm x 5.7 cm (4.2″ x 2.2″)
Weight	2.6 kg (5.7 lbs) without batteries or power supply

https://www.aconlabs.com/wp-content/uploads/2016/12/barcode2-3.png

Optional Bar-code Reader connects to the analyzer for faster input of information. It scans the canister code for quick canister code recognition to operate the analyzer as well as quick entry of Patient ID. Both canister code and Patient ID can be entered manually as well.

https://www.aconlabs.com/wp-content/uploads/2016/12/paper_rolls2.png

Printer paper rolls is available in both Thermal paper and Sticker paper. Printing results may either be automatic or manual. Can print up to 3 copies per test results for convenient record management.

https://www.aconlabs.com/wp-content/uploads/2016/12/data_transfer.png

Data Transfer Kit is used for data transfer to Personal Computer (PC) or Laboratory Information System (LIS). RS232 cable is required for connection to a personal computer and the analyzer in order to download data to PC or LIS.
