15″ Multiparameter Patient Monitor MD9015T

Name: 15″ Multiparameter Patient Monitor MD9015T
SKU: 72376
Availability: InStock

R32,118.28

MD9015Touch screen 15 inch patient monitor 192-hour trend graph,1000 group of blood pressure list,ST segment measurements, arrhythmia analysis and more functions,
Support up to 32 TCP/IP network connection,composed of a central information system..

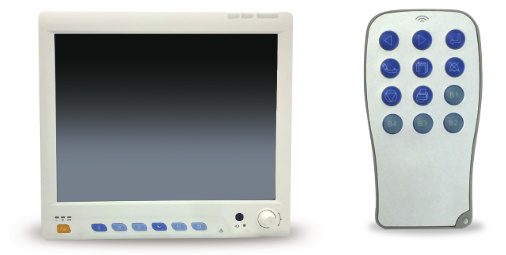

Comes with remote control

MD9015T-

1 in stock

Category: Patient monitor Tag: 15″ Multiparameter Patient Monitor MD9015T

Description

15″ Multiparameter Patient Monitor MD9015T

Product Features

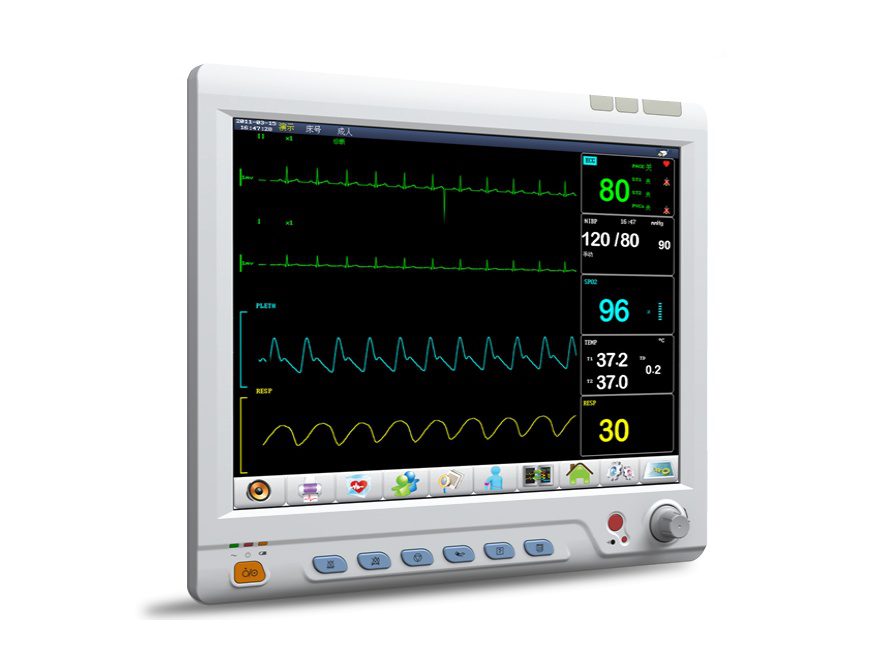

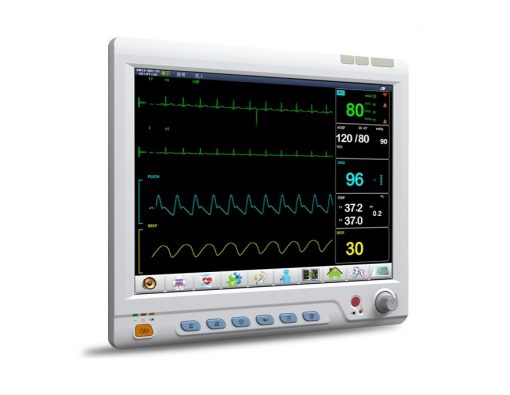

15” high resolution color TFT display with maximum 13 waveforms

Full touch-screen enables intuitive operation by clicking on the specific parameters

of the waveform in real time, standard configuration includes the navigation knob

Pacemaker detection, electrosurgical interference proof

Defibrillation protection and defibrillation synchronization

SD Card slot enable memory extension for large data storage

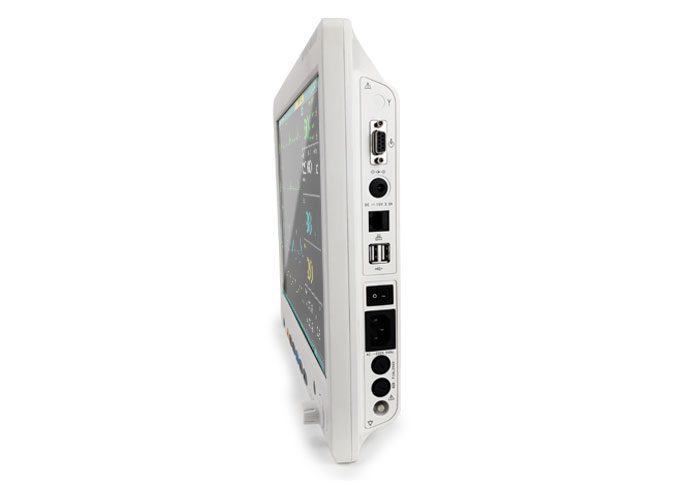

USB and serial port enable abundant future upgrades

VGA output and Analog output

OxyCRG available to judge the respiration and circulation function for neonate

Large font display

Arrhythmia and S-T segment analysis

Built-in rechargeable Li-ion (6hours maximum with 2x 4200mAh batteries)

Nurse Call function and bi-directional communication with MFM-CMS central station

Multi language: English/Simplified Chinese/Traditional Chinese/Spanish/Czech/Italian/Polish/French/German/Brazilian/Portugese/Russian.

Standard configuration: 3/5-lead ECG, NIBP, SpO2, RESP, 2-Temp, PR

Optional: 12-lead ECG, Nellcor-SpO2, Omron NIBP, 2-IBP/4-IBP, Mainstream/Side stream CO2,

CO, Multi-Gas, Full Touch Screen, Thermal Recorder, WLAN Accessory

Large Data Storage: 120 hours graphic and tabular trends of all parameters; 1200 sets of NIBP

measurement and 70 alarm events; 2-USB ports and SC card slot ensure data storage/function upgrades.

Clinical data can be viewed and managed via Patientcare viewer software (To be released)

Clinical network: bi-directional communication with CMS-2000 central station by wired or wireless connection

Complete and flexible mounting solution for ICU and operation room. High-end parameters for more flexible clinical applications.

MD9015T Support:

DC power input and to adapt to a variety of environmental conditions

External recorder can print the recorded waveform data and other information in real time

External the EtCO2 interface can be connected to the mainstream CO2 module to facilitate the clinical needs

Drug concentration in titration calculations to support the event functions to customize and record

Up to 32 TCP / IP network connection composed of a central information system

Wireless networking

Options
Invasive Blood Pressure (IBP)
Carbon dioxide (CO2) Module
Masimo SpO2 Module
Thermal Printer

Product Specification

Electrocardiogram (ECG)

Input mode	Five-lead ECG input / three-lead ECG input
Lead selection	I, II, III, aVR, aVL, aVF, V-
Gain selection	AUTO,0.25X,0.5X,1X,2X,4X
Operating mode	Diagnostic mode, monitoring mode, operation mode
Calibration signal	1mV ±5%
Protection	The isolation voltage 4000V, 50/60Hz. Anti-high-frequency interference of electric knife. Anti-defibrillation protection.
Pacemaker at the same time use	Support
Electrode off instructions	Each electrode (RL excluded)
Scanning speed	12.5mm/s, 25 mm/s, 50 mm/s
Common mode rejection ratio	≥90dB
Input impedance	≥5.0MΩ

Heart Raterate (HR)

Measuring range	Adult 30 ~ 300bpm, newborns 30 to 350 bpm
Resolution	1 bpm
Accuracy	< ±5bpm
Heart rate sensitivity	≥0.20mVp-p
Alarm range	15 to 350 bpm, upper and lower limits
Alarm indication	Audible and visual alarm, display the data and parameters flashing display alarm message text prompts, there are three levels of alarm

Pulse Oximetry
SPO2 Range: 1% to 99%
Resolution: 1%
Accuracy: 70% to 99% range: ±2%;
1% to 69% range: ±5%;
Method: Dual wavelength LED

ST-segment

ST-segment measurement range	-2.0～+2.0mV
ST-segment measurement accuracy	Within the range of -0.8 ~ +0.8 mV: ± 0.02mV or reading± 10%, Whichever is greater; Other range: undefined
Resolution	0.01mV
ST-segment update cycle	10s
ST segment alarm range	-2.0 ~ +2.0 MV, the upper and lower limits continuously adjustable

Arrhythmia analysis

Arrhythmia types

13 kinds of (scalable)

Respiration Rate
Rate: 2 to 120 bpm (CO2)
Resolution: 1 breath/min

NIBP (Non-invasive Blood Pressure)
Technique: Oscillometric during inflation
Range: Adult/Pediatric: 40 to 240 mmHg
Neonate: 10 to 150 mmHg
Measurement Cycle: < 40 sec. typical
Automatic Measurement
Cycles (Selectable): 2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr
STAT Mode: 5 minutes of continuous readings
Max. Allowable Cuff
Pressure: Adult: 300mmHg
Pediatric: 240 mmHg;
Neonate: 150 mmHg
Resolution: 1 mmHg
Transducer Accuracy: ±2 mmHg or ±2% of reading,
Heart (Pulse) Rate
Range: 30 to 250 bpm
Accuracy: ±2 bpm or ±3%, whichever is greater

EtCO2 technological index

Interface form	External interface
Range of measurement	0~10 kPa or (0~75) mmHg
precision（error）	(0kPa~5.4kPa) the error is ±0.3kPa、 (5.5kPa~10.0kPa)the error is ±0.7kPa
Alarm upper limit	2.1~13.2 kPa
Alarm lower limit	0~6.5 kPa
time	12s
EtCO2	exist
Unit	kPa / mmHg / %
Compatibility	external main stream and side stream are compatible
IBP technological index
Measured channel	Single way and double way are optional
Range of measurement	SYS： 6.7kPa～32.0kPa(50mmHg～240mmHg) MEAN： 3.4kPa～26.6kPa(26mmHg～200mmHg) DIA： 2.9kPa～24.0kPa(22mmHg～180mmHg)
Mean error	≤±0.4kPa (±3mmHg)
Range of alarm	SYS： upper limit 0.3kPa~53.3kPa(2mmHg~400mmHg) Lower limit 0kPa~53.1kPa(0mmHg~398mmHg) MEAN： upper limit 0.3kPa~53.3kPa (2mmHg~400mmHg) Lower limit 0kPa~53.1kPa (0mmHg~398mmHg) DIA： upper limit 0.3kPa~53.3kPa ( 2mmHg~400mmHg) Lower limit 0kPa~53.1kPa ( 0mmHg~398mmHg)
Measured unit	mmHg/kPa
Specification of sensor	DPT-248（space）
Consumables mode	SCW-UTAH-01
